CX Lighting is a leading manufacturer and supplier of clean room lighting equipment for laboratories, pharmaceutical areas, semi-conductor manufacturing areas, healthcare, kitchens and food preparation applications. We have provided integrated lighting solutions for many of the blue chip pharmaceutical manufacturers, both in Asia and world wide.

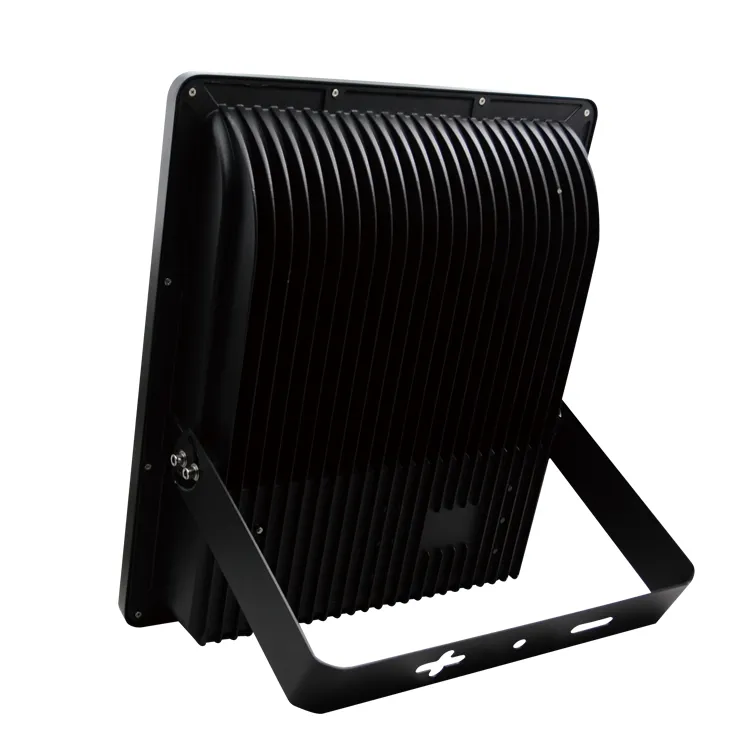

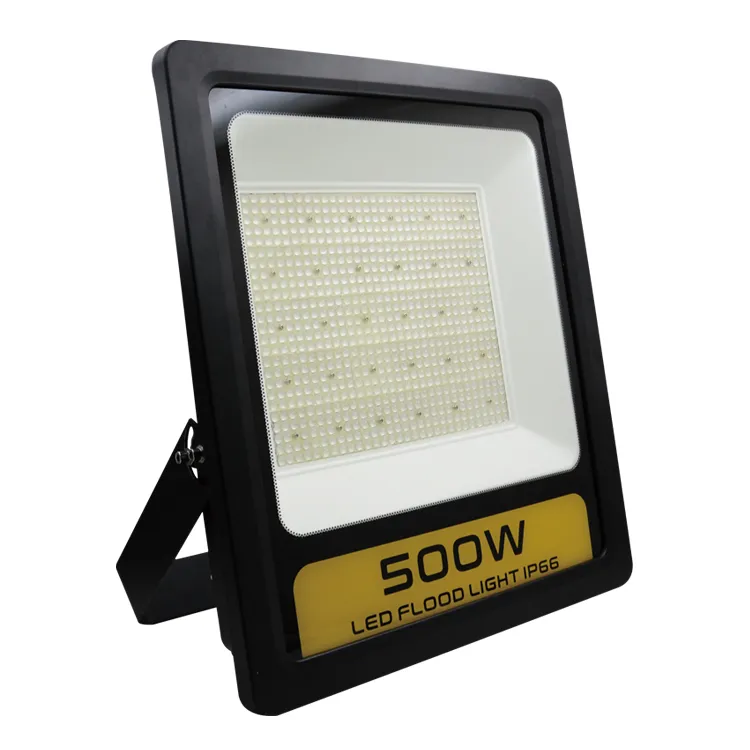

LED Flood Light
![Die Cast Aluminum Shell 70W Outdoor IP65 Waterproof LED Floodlight](https://img3.grofrom.com/protectorkrpgroup/170f09849e21fb3cc09f69c3fe6200ee.webp)
![Die Cast Aluminum Shell 70W Outdoor IP65 Waterproof LED Floodlight](https://img3.grofrom.com/protectorkrpgroup/94fe01c397ec60fdefcc827fcf3cd7d6.webp)
Model | CCT | CRI | Lumens | Rated Life | PF | IP Rating | Size |
CX-FL01-200W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 184.5*372.9*120mm |
CX-FL01-400W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 369.5*372.9*120mm |
CX-FL01-600W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 554.5*372.9*139mm |
CX-FL01-800W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 739.5*372.9*139mm |
CX-FL01-1000W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 924.5*372.9*139mm |
CX-FL01-1200W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 554.5*745.9*139mm |
CX-FL01-1600W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 739.5*745.9*139mm |
CX-FL01-2000W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 924.5*745.9*139mm |
LED Flood Light
![Die Cast Aluminum Shell 70W Outdoor IP65 Waterproof LED Floodlight](https://img3.grofrom.com/protectorkrpgroup/af68ec8a771cfdb5775a0f76797992a0.webp)
![Die Cast Aluminum Shell 70W Outdoor IP65 Waterproof LED Floodlight](https://img3.grofrom.com/protectorkrpgroup/e3b1bdb40b748071f943c56cd196c381.webp)
Model | CCT | CRI | Lumens | Rated Life | PF | IP Rating | Size |
CX-FL05-50W-GKA1 | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 365*50*110mm |
CX-FL05-100W-GKA1 | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 265*110*110mm |
CX-FL05-150W-GKA1 | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 265*170*110mm |
CX-FL05-100W-GKB1 | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 240*165*110mm |
CX-FL05-150W-GKB1 | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 240*240*110mm |
CX-FL05-200W-GKB1 | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 240*315*110mm |
LED Flood Light
![Die Cast Aluminum Shell 70W Outdoor IP65 Waterproof LED Floodlight](https://img3.grofrom.com/protectorkrpgroup/07c7e5c85956f0913934b2f9a9beab9b.webp)
![Die Cast Aluminum Shell 70W Outdoor IP65 Waterproof LED Floodlight](https://img3.grofrom.com/protectorkrpgroup/a9cfeba25b4a10df643231656a93e48a.webp)
Model | CCT | CRI | Lumens | Rated Life | PF | IP Rating | Size |
CX-FL06-50W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 297*315*57mm |
CX-FL06-150W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 346*365*57mm |
CX-FL06-300W | 3000-6500K | Ra>80 | 120-160LM/W | 30000/50000H | >0.95 | IP65 | 444*530*60mm |
FAQ:
Q1: Are you a factory or trading company?
A1:We are a factory,And we can according to clients request to design and produce.
Q2: What is the Warranty for the led light?
A2: For the led light, we have 2 years warranty. And some special offer with 3 or 5 years warranty as customers request.
Q3: What is CRI?
A3:CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED lights, the CRI is higher than 80. For the outdoor light, the CRI higher than 70 is OK at most of applications.
Q4: Is there cheap shipping cost to import to our country?
A4: For small order, express will be best. And for bulk order, sea ship way is best but take much time.For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q5: How do you offer samples?
A5: We offer free samples in certain quantity with shipping cost paid by the clients
Q6: Can your factory make the lights based on customers' design?
A6:Yes, we offer OEM and ODM service, we have professional engineers for R&D.
Q7: Could you offer OEM led light?
A7: Yes, we offer OEM led light, the OEM led light could offer your laber and your color box.
Q8: What is your delivery time?
A8:Sample order: 3-7 working days
Mass order: 25-30 days after 30% deposit received
Q9: What is your payment terms?
A9:Payment shall be 50% deposit by TT, balance against copy of TT,or L/C at sight.
